36MP025M6FA6, Timing Pulley

36MP025M6FA6

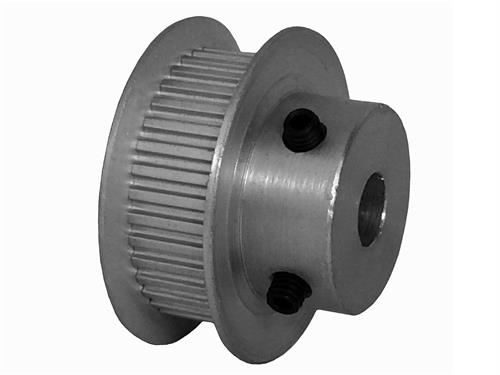

Click to Enlarge

36MP025M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 36MP025M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	36MP025M6FA6
Teeth	36
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore Description	6 mm Finished Bore
Bore (mm)	6.00
Pitch Diameter (in)	0.917
Outside Diameter (in)	0.897
Flange Diameter (in)	1.105
Pulley Belt Width (mm)	7.20
Unit System	Metric
P.D. (mm)	23.00
O.D. (mm)	22.80
Flange Diameter (mm)	28.10
Face Width (mm)	9.90
Overall Length (mm)	17.50
Hub Diameter (mm)	17.20
MOQ	1
Weight (lb)	0.04
Part Number Cross Reference	A 6A16M036DF6006, A6A16M036DF6006, 36MP025M6FA6, 36MP025M6FA6
Set Screw Quantity	2
