36XHR400, Timing Pulley

36XHR400 - Cast Iron Imperial Pitch Pulleys

36XHR400

Click to Enlarge

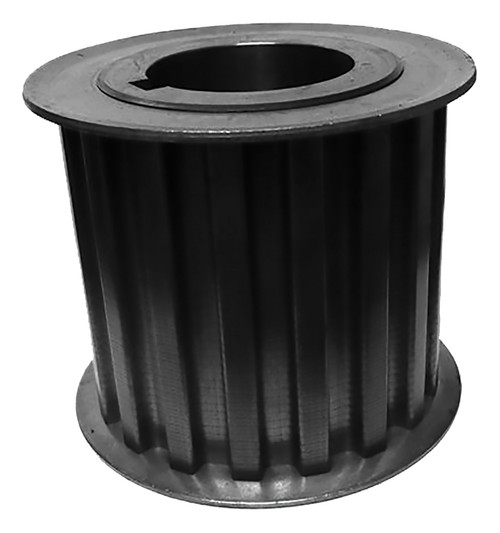

36XHR400, Timing Pulley, Cast Iron

Learn more about 36XHR400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 36XHR400
Teeth 36
Tooth Style XH
For Belt Width (in) 4.0000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R2 Bushing
Pitch Diameter (in) 10.027
Outside Diameter (in) 9.917
Flange Diameter (in) 10.563
Face Width (in) 4.688
Overall Length (in) 5.156
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
P.D. (mm) 255.00
O.D. (mm) 251.90
MOQ 1
Weight (lb) 68.50
Part Number Cross Reference 36XHR400, 36XHR400, 36XHR400
