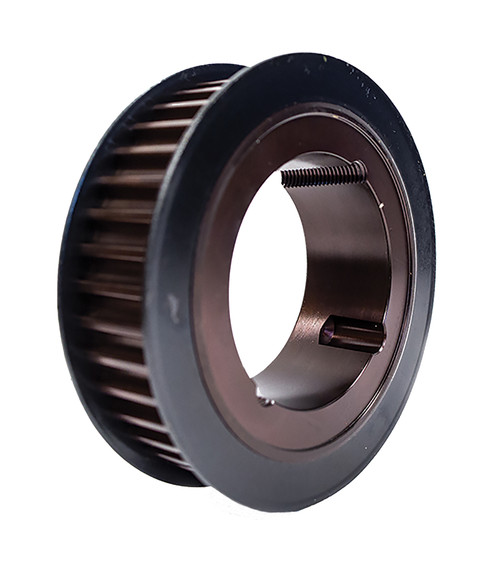

37-14MX37-2517, Timing Pulley

37-14MX37-2517 - Cast Iron Powerhouse® MX Pulleys

Product Details for 37-14MX37-2517

Comparable to: 37-14MX37-2517, 14MX-37S-37, B14MCS-37-37, 37G-14M-37-TL2517, 208398

37-14MX37-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 37-14MX37-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 37-14MX37-2517
Teeth 37
Tooth Style GT2 14mm
For Belt Width (mm) 37.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 6.492
Outside Diameter (in) 6.382
Flange Diameter (in) 7.167
Face Width (in) 1.690
Overall Length (in) 2.000
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.740
Unit System Inch
Bushing 2517
Max. Bore (in) 2.6875
Weight (lb) 10.76
Part Number Cross Reference 37-14MX37-2517, 14MX-37S-37, B14MCS-37-37, 37G-14M-37-TL2517, 208398
