37-14MX68-3020, Timing Pulley

37-14MX68-3020 - Cast Iron Powerhouse® MX Pulleys

Product Details for 37-14MX68-3020

Comparable to: 14MX-37S-68, 2766962, B14MCS-37-68, 37G-14M-68-3020, 20839816, 482105, 14MPC37S68, 14MX-37S-37-2517

Click to Enlarge

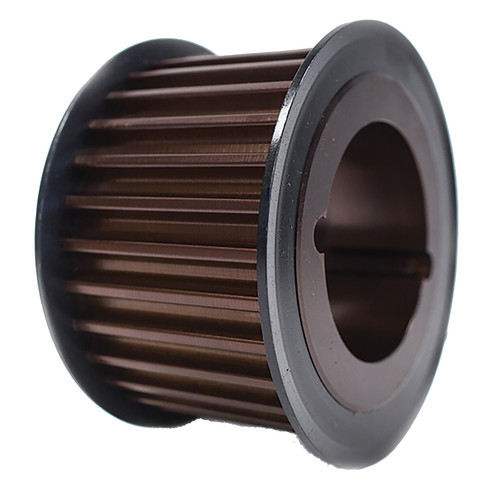

37-14MX68-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 37-14MX68-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 37-14MX68-3020
Teeth 37
Tooth Style GT2 14mm
For Belt Width (mm) 68
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 6.492
Outside Diameter (in) 6.382
Flange Diameter (in) 7.167
Face Width (in) 3.328
Overall Length (in) 3.328
Min. Bore (in) 0.875
Pulley Belt Width (in) 3.010
Unit System Inch
Bushing 3020
Max. Bore (in) 3.250
MOQ 1
Weight (lb) 11.72
Part Number Cross Reference 14MX-37S-68, 2766962, B14MCS-37-68, 37G-14M-68-3020, 20839816, 482105, 14MPC37S68, 14MX-37S-37-2517
