37-8MX36-1610, Timing Pulley

37-8MX36-1610 - Cast Iron Powerhouse® MX Pulleys

37-8MX36-1610

Click to Enlarge

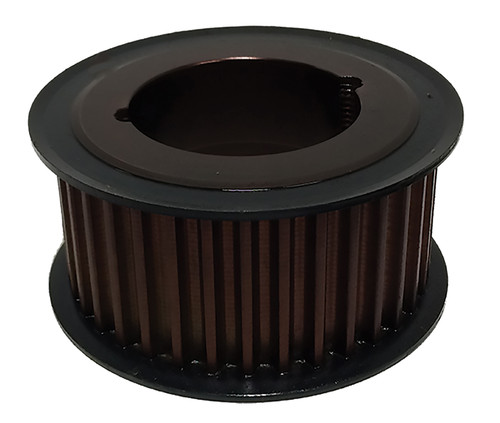

37-8MX36-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 37-8MX36-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 37-8MX36-1610
Teeth 37
Tooth Style 8MX
For Belt Width (mm) 36.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 3.709
Outside Diameter (in) 3.646
Flange Diameter (in) 4.156
Face Width (in) 1.859
Overall Length (in) 1.859
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.620
Unit System Inch
Bushing 1610
P.D. (mm) 94.00
O.D. (mm) 92.60
MOQ 1
Weight (lb) 2.60
Part Number Cross Reference 8MX-37S-36, B8MCS-37-36, 37G-8M-36-1610, 8MX-37S-36-1610 HT500 SPKT, 8MPC37S36, 37-8MX36-1610, 481963, 37-8MX36-1610
