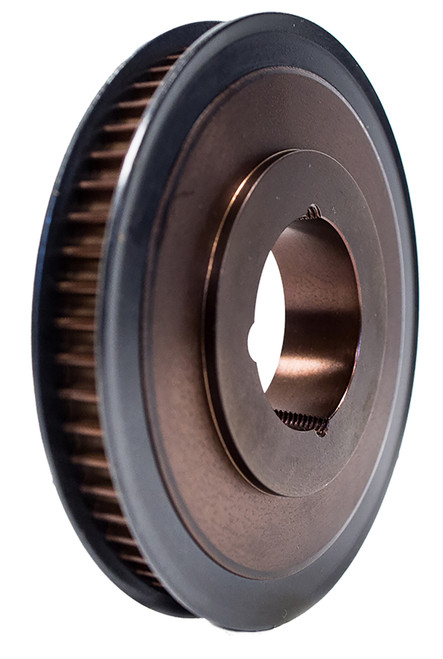

37-8P12-1210, Timing Pulley

37-8P12-1210 - Cast Iron Powerhouse® Pulleys

37-8P12-1210

Click to Enlarge

37-8P12-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 37-8P12-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 37-8P12-1210
Teeth 37
Tooth Style 8P
For Belt Width (mm) 12.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 3.709
Outside Diameter (in) 3.655
Flange Diameter (in) 4.050
Face Width (in) 1.000
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.760
Unit System Inch
Bushing 1210
P.D. (mm) 94.00
O.D. (mm) 92.80
MOQ 1
Weight (lb) 1.97
Part Number Cross Reference P37-8MGT-12, 37-8P12-1210, 37-8P12-1210
