37-8P20-1610, Timing Pulley

37-8P20-1610 - Cast Iron Powerhouse® Pulleys

Product Details for 37-8P20-1610

Comparable to: P37-8MGT-20, 77082037, 2762615, B378M20TL

Click to Enlarge

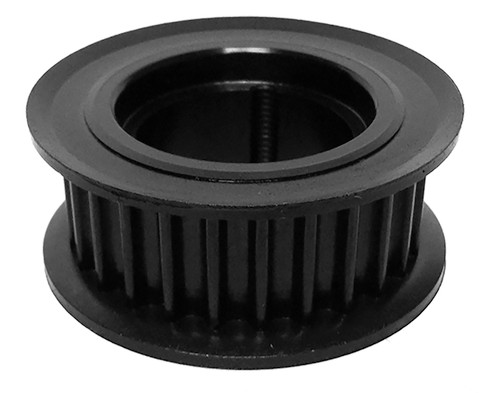

37-8P20-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 37-8P20-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 37-8P20-1610
Teeth 37
Tooth Style 8P
For Belt Width (mm) 20
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 3.710
Outside Diameter (in) 3.656
Flange Diameter (in) 4.050
Face Width (in) 1.130
Overall Length (in) 1.130
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.890
Unit System Inch
Bushing 1610
MOQ 1
Weight (lb) 1.77
Part Number Cross Reference P37-8MGT-20, 77082037, 2762615, B378M20TL
