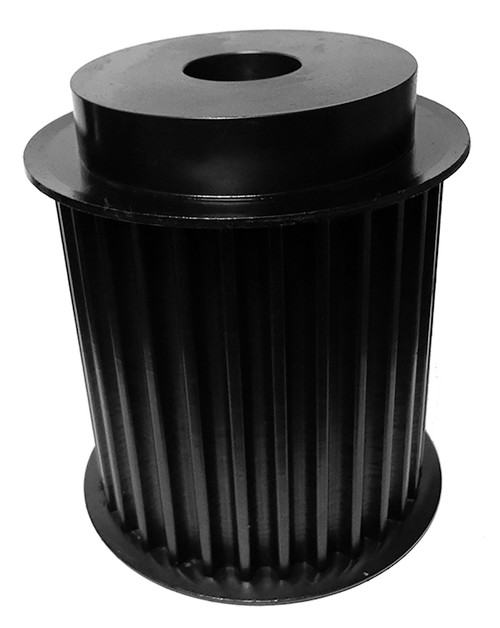

38-14MX125-6FS16, Timing Pulley

38-14MX125-6FS16

Click to Enlarge

38-14MX125-6FS16, Timing Pulley, Steel, Black Oxide,

Learn more about 38-14MX125-6FS16 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	38-14MX125-6FS16
Teeth	38
Tooth Style	14MX
For Belt Width (mm)	125.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.500
Bore Description	1-1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	6.667
Outside Diameter (in)	6.557
Flange Diameter (in)	7.167
Face Width (in)	5.609
Overall Length (in)	6.688
Hub Diameter (in)	5.630
Min. Bore (in)	1.5
Pulley Belt Width (in)	5.290
Unit System	Inch
P.D. (mm)	169.00
O.D. (mm)	166.50
MOQ	1
Weight (lb)	49.30
Part Number Cross Reference	PB14MX-38S-125, PB14MCS-38-125, 38G-14M-125-MPB, 20839821, PB14MX-38S-125 MPB, 14MPC38S125MPB, 38-14MX125-6FS16, 482176, 38-14MX125-6FS16
