38-14P85-3020, Timing Pulley

38-14P85-3020 - Cast Iron Powerhouse® Pulleys

38-14P85-3020

Click to Enlarge

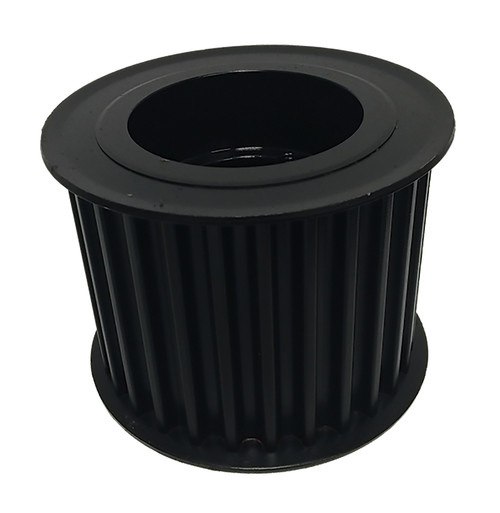

38-14P85-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 38-14P85-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-14P85-3020
Teeth 38
Tooth Style 14P
For Belt Width (mm) 85
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3020 Bushing
Pitch Diameter (in) 6.667
Outside Diameter (in) 6.557
Flange Diameter (in) 7.167
Face Width (in) 4.000
Overall Length (in) 4.000
Min. Bore (in) 0.875
Pulley Belt Width (in) 3.680
Unit System Inch
Bushing 3020
P.D. (mm) 169.00
O.D. (mm) 166.50
MOQ 1
Weight (lb) 17.38
Part Number Cross Reference P38-14MGT-85, B3814M85TL, 38-14P85-3020
