38-3M09M6FA6, Timing Pulley

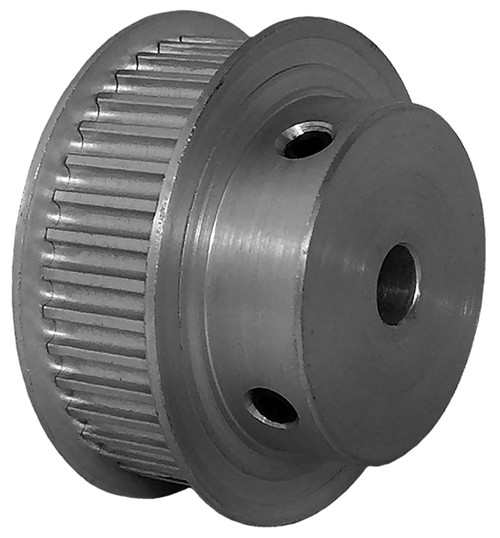

38-3M09M6FA6 - Aluminum Powerhouse®HTD® Pulleys

38-3M09M6FA6

38-3M09M6FA6 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

38-3M09M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 38-3M09M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-3M09M6FA6
Teeth 38
Tooth Style HTD3mm
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.429
Outside Diameter (in) 1.399
Pulley Belt Width (mm) 10.20
Unit System Metric
P.D. (mm) 36.00
O.D. (mm) 35.50
Flange Diameter (mm) 39.40
Face Width (mm) 13.40
Overall Length (mm) 21.40
Hub Diameter (mm) 27.30
MOQ 1
Weight (lb) 0.11
Part Number Cross Reference A 6A23M038DF0906, A6A23M038DF0906, 38-3M09M6FA6, 38-3M09M6FA6
Set Screw Quantity 2
