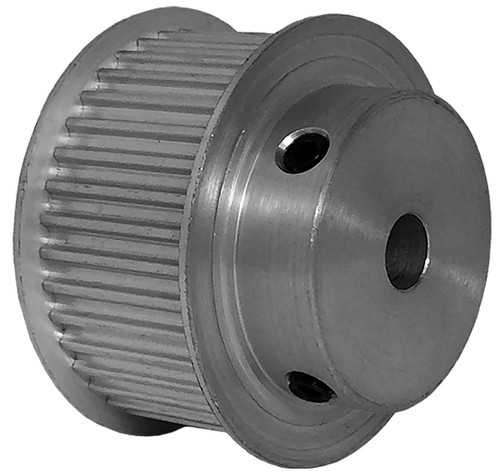

38-3P15-6FA3, Timing Pulley

38-3P15-6FA3

Click to Enlarge

38-3P15-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 38-3P15-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	38-3P15-6FA3
Teeth	38
Tooth Style	3P
For Belt Width (mm)	15.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.429
Outside Diameter (in)	1.399
Flange Diameter (in)	1.549
Face Width (in)	0.742
Overall Length (in)	1.069
Hub Diameter (in)	1.075
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.636
Unit System	Inch
P.D. (mm)	36.00
O.D. (mm)	35.50
MOQ	1
Weight (lb)	0.14
Part Number Cross Reference	3MR-38S-15, 3MR-38S-15-6F, TP3A3W15-38, 38-3GT15-1A X 1/4, 38-3P15-6FA3, 21071084, 38-3P15-6FA3, 38-3P15-6FA3
Set Screw Quantity	2
