38-5M09-6A4, Timing Pulley

38-5M09-6A4 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 38-5M09-6A4

Comparable to: A 6A25-038NF0910, A6A25-038NF0910, P38-5M-09AL, 78821039, PT037G08L09N, 38-5M-09 X 5/16

Click to Enlarge

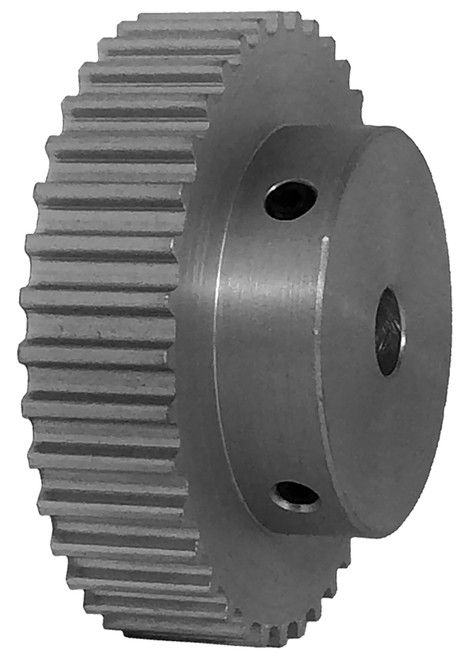

38-5M09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 38-5M09-6A4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-5M09-6A4
Teeth 38
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 2.381
Outside Diameter (in) 2.336
Face Width (in) 0.546
Overall Length (in) 0.937
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Unit System Inch
MOQ 1
Weight (lb) 0.30
Part Number Cross Reference A 6A25-038NF0910, A6A25-038NF0910, P38-5M-09AL, 78821039, PT037G08L09N, 38-5M-09 X 5/16
Set Screw Quantity 2
