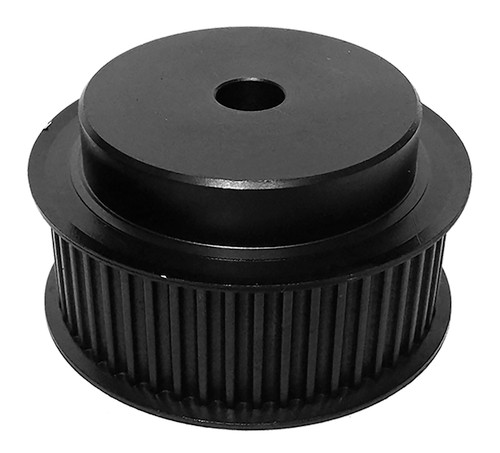

38-5MX25-6FS6, Timing Pulley

38-5MX25-6FS6 - Steel Powerhouse® MX Pulleys

38-5MX25-6FS6

Click to Enlarge

38-5MX25-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 38-5MX25-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-5MX25-6FS6
Teeth 38
Tooth Style 5MX
For Belt Width (mm) 25.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.500
Bore Description 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.381
Outside Diameter (in) 2.336
Flange Diameter (in) 2.625
Face Width (in) 1.280
Overall Length (in) 1.730
Hub Diameter (in) 1.960
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.100
Unit System Inch
P.D. (mm) 60.00
O.D. (mm) 59.30
MOQ 1
Weight (lb) 1.70
Part Number Cross Reference 38-5MX25-6FS6, 38-5MX25-6FS6
