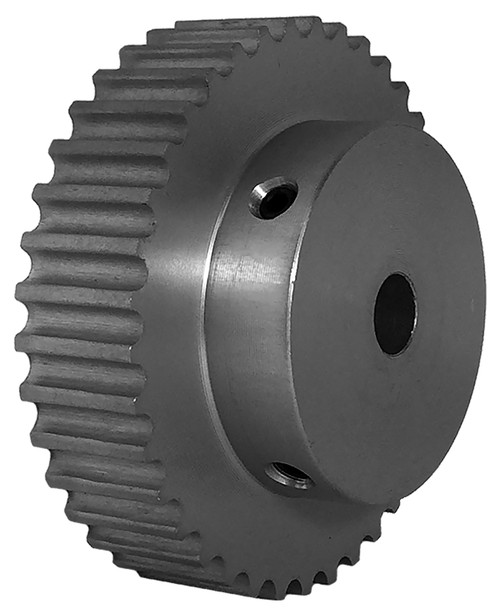

38-5P09-6A4, Timing Pulley

38-5P09-6A4 - Aluminum Powerhouse® Pulleys

38-5P09-6A4

38-5P09-6A4 - Aluminum Powerhouse® Pulleys Line Drawing

Click to Enlarge

38-5P09-6A4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 38-5P09-6A4 Timing Pulleys and Toronto Gear View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-5P09-6A4
Teeth 38
Tooth Style 5P
For Belt Width (mm) 9.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.313
Bore Description 5/16 Inch Finished Bore
Pitch Diameter (in) 2.381
Outside Diameter (in) 2.336
Face Width (in) 0.546
Overall Length (in) 0.937
Hub Diameter (in) 1.500
Min. Bore (in) 0.3125
Unit System Inch
P.D. (mm) 60.00
O.D. (mm) 59.30
MOQ 1
Weight (lb) 0.30
Part Number Cross Reference P38-5MGT-09AL, 38-5P09-6A4, 38-5P09-6A4
Set Screw Quantity 2
