38-5P25-1108, Timing Pulley

38-5P25-1108 - Steel Powerhouse® Pulleys

38-5P25-1108

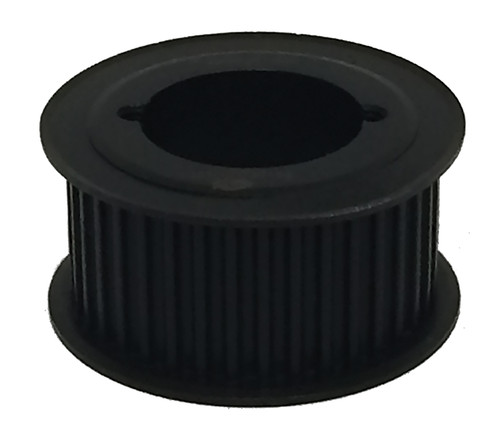

Click to Enlarge

38-5P25-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 38-5P25-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-5P25-1108
Teeth 38
Tooth Style 5P
For Belt Width (mm) 25.00
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1108 Bushing
Pitch Diameter (in) 2.381
Outside Diameter (in) 2.336
Flange Diameter (in) 2.625
Face Width (in) 1.290
Overall Length (in) 1.290
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.100
Unit System Inch
Bushing 1108
P.D. (mm) 60.00
O.D. (mm) 59.30
MOQ 1
Weight (lb) 0.81
Part Number Cross Reference P38-5MGT-25, P38-5M-25-1108 HT250 SPKT, 38-5P25-1108, 112484, 38-5P25-1108
