38-8MX21-1610, Timing Pulley

38-8MX21-1610 - Cast Iron Powerhouse® MX Pulleys

38-8MX21-1610

Click to Enlarge

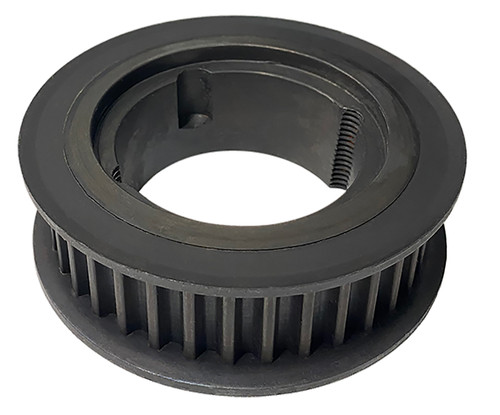

38-8MX21-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 38-8MX21-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-8MX21-1610
Teeth 38
Tooth Style 8MX
For Belt Width (mm) 21.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 3.810
Outside Diameter (in) 3.747
Flange Diameter (in) 4.156
Face Width (in) 1.203
Overall Length (in) 1.203
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.960
Unit System Inch
Bushing 1610
P.D. (mm) 97.00
O.D. (mm) 95.20
MOQ 1
Weight (lb) 2.07
Part Number Cross Reference 8MX-38S-21, B8MCS-38-21, 38G-8M-21-1610, 20296067, 8MX-38S-21-1610 HT500 SPKT, 8MPC38S21, 38-8MX21-1610, 481929, 38-8MX21-1610

Comparable to: 8MX-38S-21, B8MCS-38-21, 38G-8M-21-1610, 20296067, 8MX-38S-21-1610 HT500 SPKT, 8MPC38S21, 38-8MX21-1610, 481929, 38-8MX21-1610
