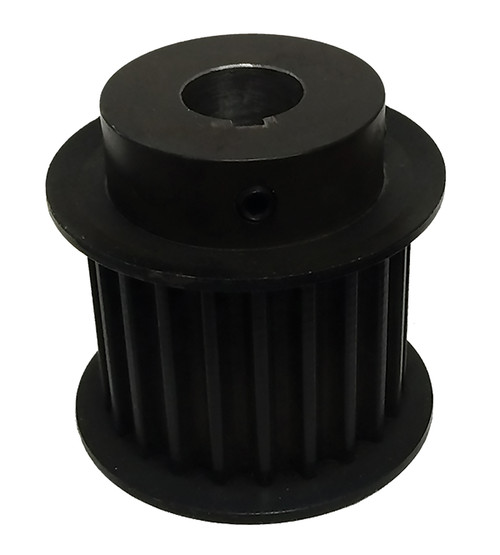

38-8MXF62X1, Timing Pulley

38-8MXF62X1 - Cast Iron Powerhouse® MX Pulleys

38-8MXF62X1

38-8MXF62X1 - Cast Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

38-8MXF62X1, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 38-8MXF62X1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 38-8MXF62X1
Teeth 38
Tooth Style 8MX
For Belt Width (mm) 62.00
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 Inch Finished Bore
Pitch Diameter (in) 3.810
Outside Diameter (in) 3.747
Flange Diameter (in) 4.160
Face Width (in) 2.906
Overall Length (in) 3.563
Min. Bore (in) 1
Unit System Inch
P.D. (mm) 97.00
O.D. (mm) 95.20
MOQ 1
Weight (lb) 4.50
Part Number Cross Reference 38-8MXF62X1, 38-8MXF62X1
Set Screw Quantity 2
