38-8P12-1210, Timing Pulley

38-8P12-1210

Click to Enlarge

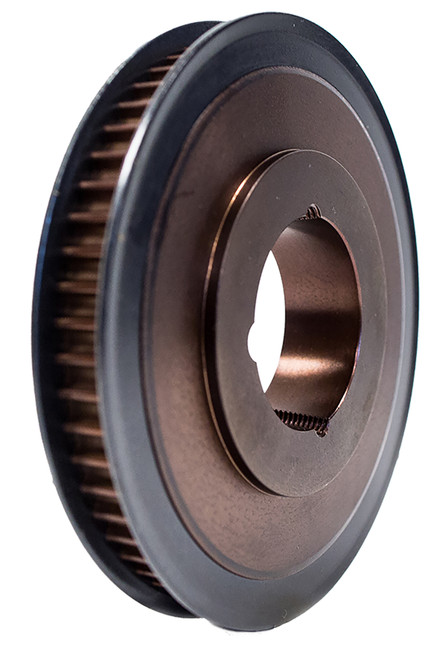

38-8P12-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 38-8P12-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	38-8P12-1210
Teeth	38
Tooth Style	8P
For Belt Width (mm)	12.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1210 Bushing
Pitch Diameter (in)	3.810
Outside Diameter (in)	3.756
Flange Diameter (in)	4.156
Face Width (in)	1.000
Overall Length (in)	1.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.760
Unit System	Inch
Bushing	1210
P.D. (mm)	97.00
O.D. (mm)	95.40
MOQ	1
Weight (lb)	2.14
Part Number Cross Reference	P38-8MGT-12, 38-8P12-1210, 38-8P12-1210
