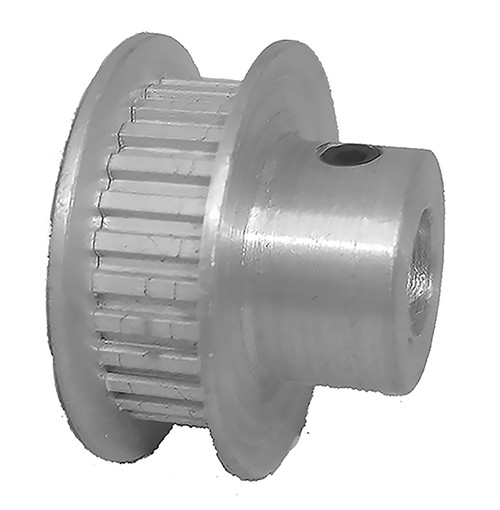

38LT187-6FA3, Timing Pulley

38LT187-6FA3

Click to Enlarge

38LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 38LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	38LT187-6FA3
Teeth	38
Tooth Style	LT
For Belt Width (in)	0.1875
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.987
Outside Diameter (in)	0.967
Flange Diameter (in)	1.155
Face Width (in)	0.324
Overall Length (in)	0.625
Hub Diameter (in)	0.728
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.220
Unit System	Inch
P.D. (mm)	25.00
O.D. (mm)	24.60
MOQ	1
Weight (lb)	0.05
Part Number Cross Reference	A 6A6-38DF01808, A6A6-38DF01808, 38LT-187 X 1/4-6F, PT038C08L02T, 38M187-1A X 1/4, 38LT187-6FA3, 38LT187-6FA3
Set Screw Quantity	2
