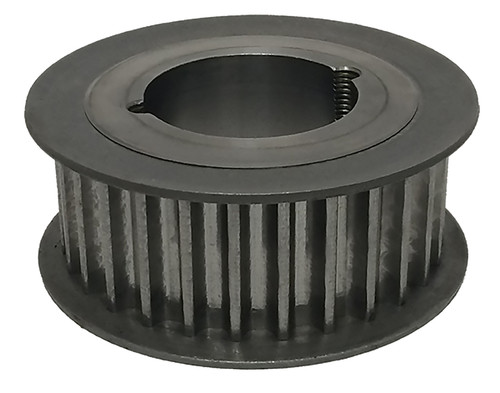

39-14P40-2517, Timing Pulley

39-14P40-2517

Click to Enlarge

39-14P40-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 39-14P40-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	39-14P40-2517
Teeth	39
Tooth Style	14P
For Belt Width (mm)	40.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2517 Bushing
Pitch Diameter (in)	6.842
Outside Diameter (in)	6.732
Flange Diameter (in)	7.518
Face Width (in)	2.130
Overall Length (in)	2.130
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.810
Unit System	Inch
Bushing	2517
P.D. (mm)	174.00
O.D. (mm)	171.00
MOQ	1
Weight (lb)	13.70
Part Number Cross Reference	P39-14MGT-40, B3914M40TL, P39-14M40-2517, 39-14P40-2517, 39-14P40-2517
