39-8P20-1610, Timing Pulley

39-8P20-1610 - Cast Iron Powerhouse® Pulleys

Product Details for 39-8P20-1610

Comparable to: P39-8MGT-20, 77082039, 2762631, B398M20TL

Click to Enlarge

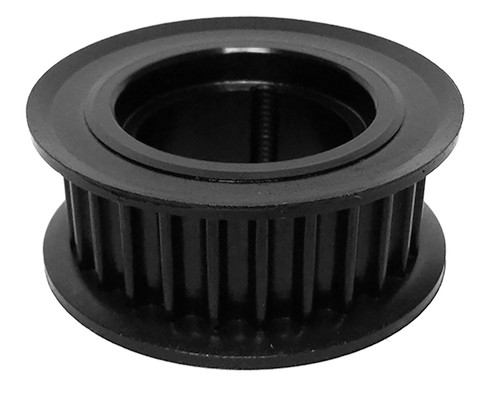

39-8P20-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 39-8P20-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 39-8P20-1610
Teeth 39
Tooth Style 8P
For Belt Width (mm) 20
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1610
Pitch Diameter (in) 3.909
Outside Diameter (in) 3.855
Flange Diameter (in) 4.331
Face Width (in) 1.130
Overall Length (in) 1.130
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.890
Unit System Inch
Bushing 1610
MOQ 1
Weight (lb) 2.18
Part Number Cross Reference P39-8MGT-20, 77082039, 2762631, B398M20TL
