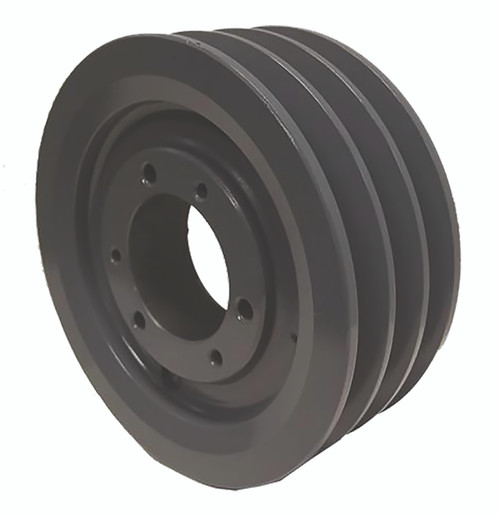

3B124SK, V-Belt Pulley

3B124SK

3B124SK, V-Belt Pulley, Cast Iron

Learn more about 3B124SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	3B124SK
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Outside Diameter (in)	12.750
Face Width (in)	2.500
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Pitch Dia. "A"	12.000
Pitch Dia. "B"	12.400
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	24.00
Part Number Cross Reference	QD3A12.0/B12.4, 3B124SK, 12.4-3B-SK, 20178972, 3B124-SK SHEAVE, 1243B, 3B124, 3B124SK, 455633, 3B124SK
Grooves	3
