3B184SK, V-Belt Pulley

3B184SK

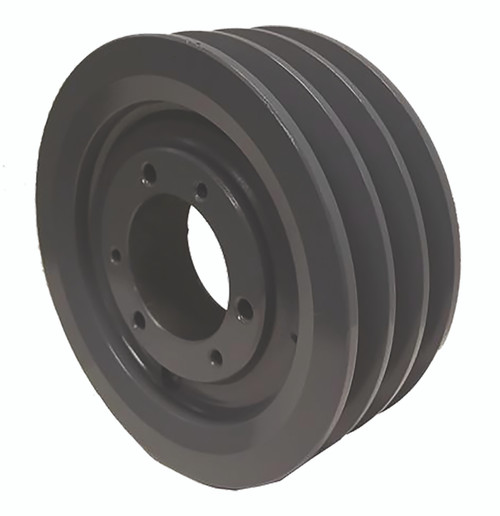

3B184SK, V-Belt Pulley, Cast Iron

Learn more about 3B184SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	3B184SK
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Outside Diameter (in)	18.750
Face Width (in)	2.500
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Pitch Dia. "A"	18.000
Pitch Dia. "B"	18.400
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	38.00
Part Number Cross Reference	QD3A18.0/B18.4, 3B184SK, 18.4-3B-SK, 20179115, 3B184-SK SHEAVE, 1843B, 3B184, 3B184SK, 455637, 3B184SK
Grooves	3
