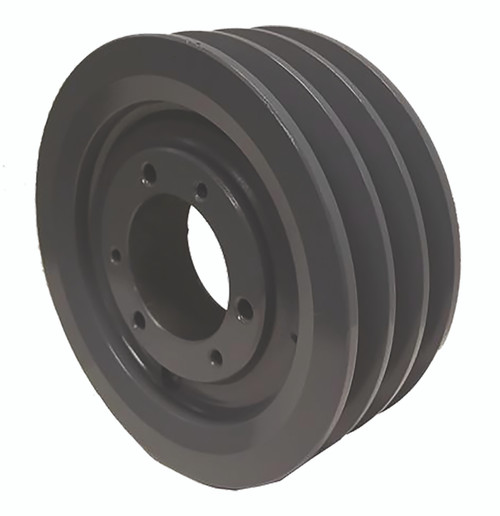

3B250SF, V-Belt Pulley

3B250SF, 25.0-3B-SF, 20179171, 2503B, 3B250

3B250SF

3B250SF, V-Belt Pulley, Cast Iron

Learn more about 3B250SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B250SF
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SF Bushing
Outside Diameter (in) 25.350
Face Width (in) 2.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SF
MOQ 1
Pitch Dia. "A" 24.600
Pitch Dia. "B" 25.000
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 54.00
Part Number Cross Reference QD3A24.6/B25.0, 3B250SF, 25.0-3B-SF, 20179171, 3B250-SF SHEAVE, 2503B, 3B250, 3B250SF, 455639, 3B250SF
Grooves 3

Related Products

Comparable to: QD3A24.6/B25.0, 3B250SF, 25.0-3B-SF, 20179171, 3B250-SF SHEAVE, 2503B, 3B250, 3B250SF, 455639, 3B250SF
