3B36SH, V-Belt Pulley

3B36SH, 3.6-3B-SH, 20179201, 363B, 3B36

Product Details for 3B36SH

Comparable to: QD3A3.2/B3.6, 3B36.SH, 3B36SH, 3.6-3B-SH, 20179201, 363B, 3B3.6, 3/B360SH, 82246869, 3B36, 3BQ36

Click to Enlarge

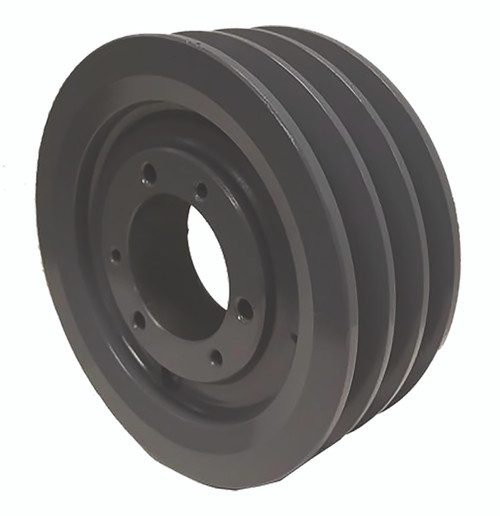

3B36SH, V-Belt Pulley, Cast Iron

Learn more about 3B36SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B36SH
Type D1
Material Cast Iron
Bore Type QD
Bore (in) SH
Outside Diameter (in) 3.950
Face Width (in) 2.500
Min. Bore (in) 0.500
Unit System Inch
Bushing SH
MOQ 1
Pitch Dia. "A" 3.200
Pitch Dia. "B" 3.600
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 4.70
Part Number Cross Reference QD3A3.2/B3.6, 3B36.SH, 3B36SH, 3.6-3B-SH, 20179201, 363B, 3B3.6, 3/B360SH, 82246869, 3B36, 3BQ36
Grooves 3
