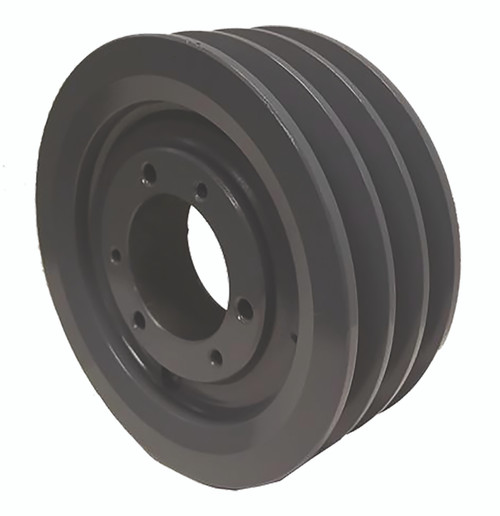

3B380E, V-Belt Pulley

3B380E

3B380E, V-Belt Pulley, Cast Iron

Learn more about 3B380E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	3B380E
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for E Bushing
Outside Diameter (in)	38.350
Face Width (in)	2.500
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
MOQ	1
Pitch Dia. "A"	37.600
Pitch Dia. "B"	38.000
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	90.00
Part Number Cross Reference	QD3A37.6/B38.0, 3B380E, 38.0-3B-E, 20179248, 3B380-E SHEAVE, 3803B, 3B380, 3B380E, 455641, 3B380E
Grooves	3
