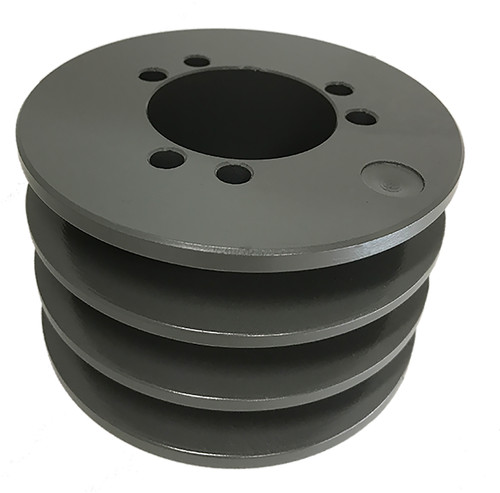

3B38SH, V-Belt Pulley

3B38SH

3B38SH, V-Belt Pulley, Cast Iron

Learn more about 3B38SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	3B38SH
Type	D-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SH Bushing
Outside Diameter (in)	4.150
Face Width (in)	2.500
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SH
MOQ	1
Pitch Dia. "A"	3.400
Pitch Dia. "B"	3.800
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	5.30
Part Number Cross Reference	QD3A3.4/B3.8, 3B38SH, 3.8-3B-SH, 20179207, 3B38-SH SHEAVE, 383B, 3B38, 3B38SH, 455611, 3B38SH
Grooves	3
