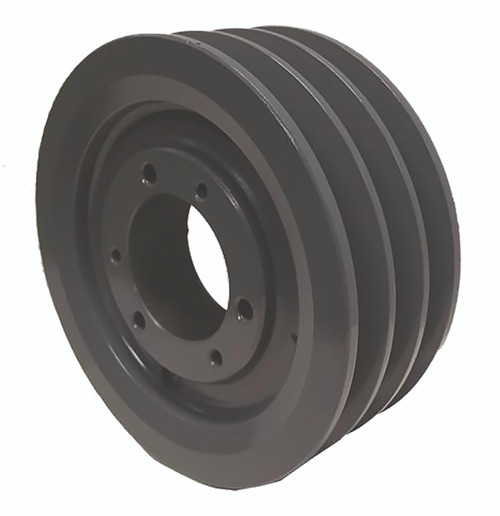

3B40SH, V-Belt Pulley

3B40SH

3B40SH, V-Belt Pulley, Cast Iron

Learn more about 3B40SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	3B40SH
Type	D-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SH Bushing
Outside Diameter (in)	4.350
Face Width (in)	2.500
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SH
MOQ	1
Pitch Dia. "A"	3.600
Pitch Dia. "B"	4.000
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	5.60
Part Number Cross Reference	QD3A4.6/B4.0, 3B40SH, 4.0-3B-SH, 20179256, 3B40-SH SHEAVE, 403B, 3B40, 3B40SH, 455612, 3B40SH
Grooves	3
