3B42SH, V-Belt Pulley

3B42SH, 4.2-3B-SH, 20179262, 423B, 3B42

3B42SH

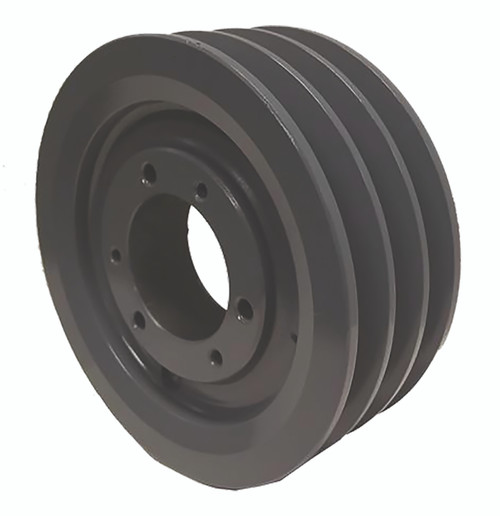

3B42SH, V-Belt Pulley, Cast Iron

Learn more about 3B42SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B42SH
Type D-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SH Bushing
Outside Diameter (in) 4.550
Face Width (in) 2.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SH
MOQ 1
Pitch Dia. "A" 3.800
Pitch Dia. "B" 4.200
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 5.90
Part Number Cross Reference QD3A4.8/B4.2, 3B42SH, 4.2-3B-SH, 20179262, 3B42-SH SHEAVE, 423B, 3B42, 3B42SH, 455613, 3B42SH
Grooves 3

Related Products

Comparable to: QD3A4.8/B4.2, 3B42SH, 4.2-3B-SH, 20179262, 3B42-SH SHEAVE, 423B, 3B42, 3B42SH, 455613, 3B42SH
