3B50SD, V-Belt Pulley

3B50SD, 5.0-3B-SD, 20179308, 503B, 3B50

3B50SD

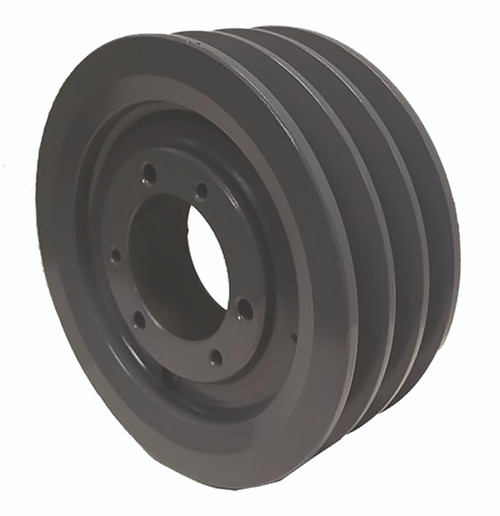

3B50SD, V-Belt Pulley, Cast Iron

Learn more about 3B50SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B50SD
Type A-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SD Bushing
Outside Diameter (in) 5.350
Face Width (in) 2.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 4.600
Pitch Dia. "B" 5.000
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 7.40
Part Number Cross Reference QD3A5.6/B5.0, 3B50SD, 5.0-3B-SD, 20179308, 3B50-SD SHEAVE, 503B, 3B50, 3B50SD, 455617, 3B50SD
Grooves 3

Related Products

Comparable to: QD3A5.6/B5.0, 3B50SD, 5.0-3B-SD, 20179308, 3B50-SD SHEAVE, 503B, 3B50, 3B50SD, 455617, 3B50SD
