3B52SD, V-Belt Pulley

3B52SD, 5.2-3B-SD, 20179317, 523B, 3B52

Product Details for 3B52SD

Comparable to: QD3A5.0/B5.2, 3B52.SD, 3B52SD, 5.2-3B-SD, 20179317, 523B, 3B5.2, 3/B520SD, 82246000, 3B52, 3BQ52

Click to Enlarge

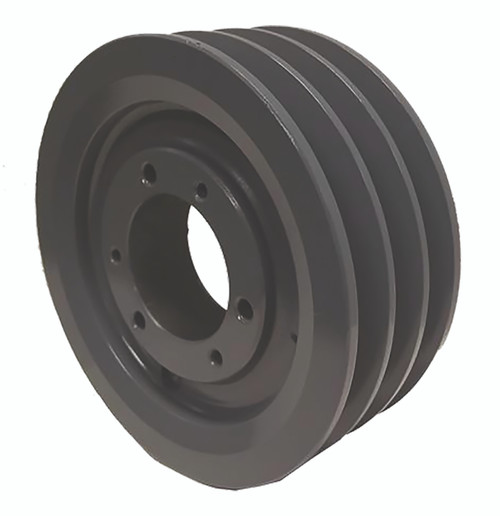

3B52SD, V-Belt Pulley, Cast Iron

Learn more about 3B52SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B52SD
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SD
Outside Diameter (in) 5.550
Face Width (in) 2.500
Min. Bore (in) 0.500
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 4.800
Pitch Dia. "B" 5.200
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 7.80
Part Number Cross Reference QD3A5.0/B5.2, 3B52.SD, 3B52SD, 5.2-3B-SD, 20179317, 523B, 3B5.2, 3/B520SD, 82246000, 3B52, 3BQ52
Grooves 3
