3B54SD, V-Belt Pulley

3B54SD, 5.4-3B-SD, 20179324, 543B, 3B54

3B54SD

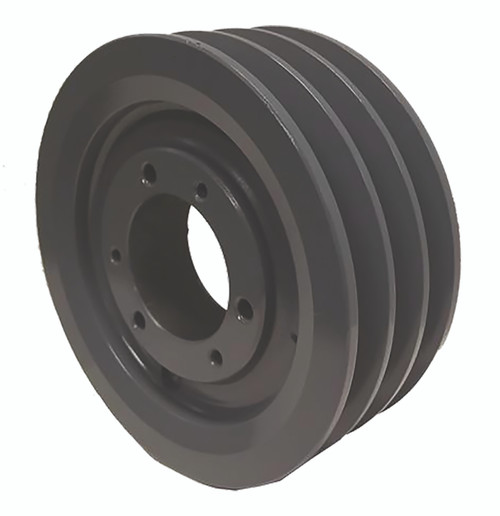

3B54SD, V-Belt Pulley, Cast Iron

Learn more about 3B54SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B54SD
Type A-1
Material Cast Iron
Bore Type QD
Bore Description Bored for SD Bushing
Outside Diameter (in) 5.750
Face Width (in) 2.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 5.000
Pitch Dia. "B" 5.400
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 8.20
Part Number Cross Reference QD3A5.0/B5.4, 3B54SD, 5.4-3B-SD, 20179324, 3B54-SD SHEAVE, 543B, 3B54, 3B54SD, 455619, 3B54SD
Grooves 3

Related Products

Comparable to: QD3A5.0/B5.4, 3B54SD, 5.4-3B-SD, 20179324, 3B54-SD SHEAVE, 543B, 3B54, 3B54SD, 455619, 3B54SD
