3B64SD, V-Belt Pulley

3B64SD, 6.4-3B-SD, 20179390, 643B, 3B64

Product Details for 3B64SD

Comparable to: QD3A6.2/B6.4, 3B64.SD, 3B64SD, 6.4-3B-SD, 20179390, 643B, 3B6.4, 3/B640SD, 82245952, 3B64, 3BQ64

Click to Enlarge

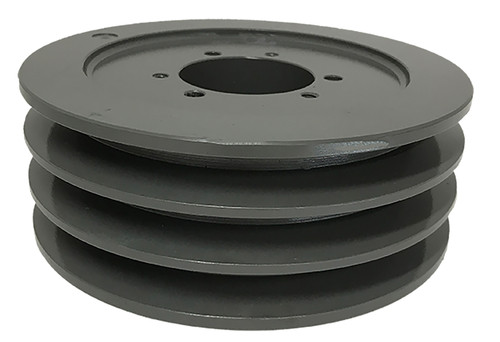

3B64SD, V-Belt Pulley, Cast Iron

Learn more about 3B64SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B64SD
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SD
Outside Diameter (in) 6.750
Face Width (in) 2.500
Min. Bore (in) 0.500
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 6.000
Pitch Dia. "B" 6.400
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 9.70
Part Number Cross Reference QD3A6.2/B6.4, 3B64.SD, 3B64SD, 6.4-3B-SD, 20179390, 643B, 3B6.4, 3/B640SD, 82245952, 3B64, 3BQ64
Grooves 3
