3B68SD, V-Belt Pulley

3B68SD, 6.8-3B-SD, 20179408, 683B, 3B68

3B68SD

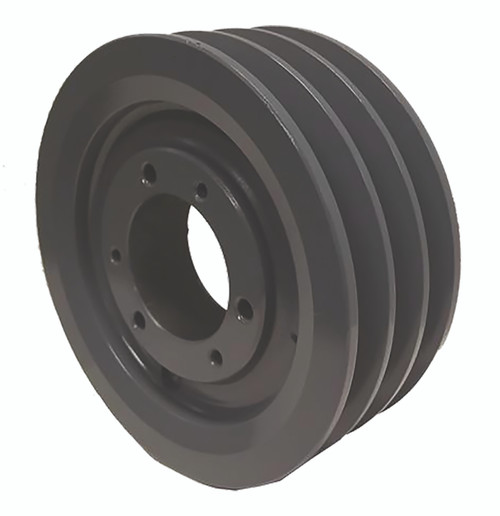

3B68SD, V-Belt Pulley, Cast Iron

Learn more about 3B68SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B68SD
Type B-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SD Bushing
Outside Diameter (in) 7.150
Face Width (in) 2.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SD
MOQ 1
Pitch Dia. "A" 6.400
Pitch Dia. "B" 6.800
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 10.50
Part Number Cross Reference QD3A6.4/B6.8, 3B68SD, 6.8-3B-SD, 20179408, 3B68-SD SHEAVE, 683B, 3B68, 3B68SD, 455626, 3B68SD
Grooves 3

Related Products

Comparable to: QD3A6.4/B6.8, 3B68SD, 6.8-3B-SD, 20179408, 3B68-SD SHEAVE, 683B, 3B68, 3B68SD, 455626, 3B68SD
