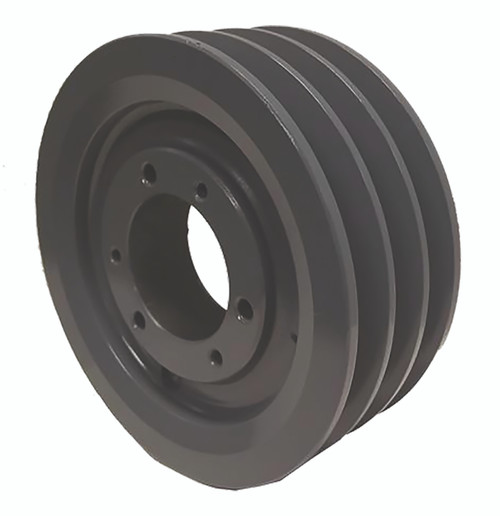

3B80SK, V-Belt Pulley

3B80SK, 8.0-3B-SK, 20179451, 803B, 3B80

3B80SK

3B80SK, V-Belt Pulley, Cast Iron

Learn more about 3B80SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B80SK
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SK Bushing
Outside Diameter (in) 8.350
Face Width (in) 2.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
MOQ 1
Pitch Dia. "A" 7.600
Pitch Dia. "B" 8.000
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 12.50
Part Number Cross Reference QD3A8.6/B8.0, 3B80SK, 8.0-3B-SK, 20179451, 3B80-SK SHEAVE, 803B, 3B80, 3B80SK, 455629, 3B80SK
Grooves 3

Related Products

Comparable to: QD3A8.6/B8.0, 3B80SK, 8.0-3B-SK, 20179451, 3B80-SK SHEAVE, 803B, 3B80, 3B80SK, 455629, 3B80SK
