3B86SK, V-Belt Pulley

3B86SK, 8.6-3B-SK, 20179475, 863B, 3B86

3B86SK

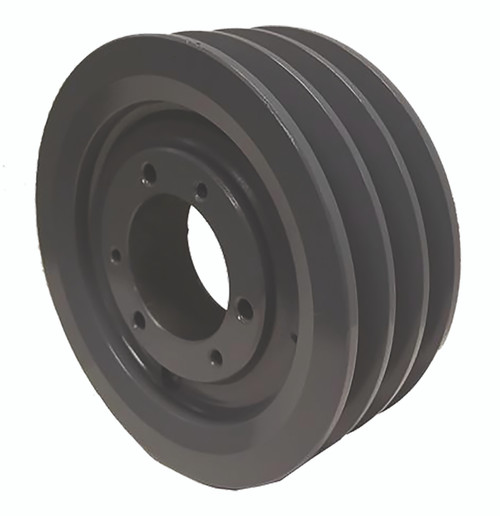

3B86SK, V-Belt Pulley, Cast Iron

Learn more about 3B86SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 3B86SK
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SK Bushing
Outside Diameter (in) 8.950
Face Width (in) 2.500
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
MOQ 1
Pitch Dia. "A" 8.200
Pitch Dia. "B" 8.600
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 13.00
Part Number Cross Reference QD3A8.2/B8.6, 3B86SK, 8.6-3B-SK, 20179475, 3B86-SK SHEAVE, 863B, 3B86, 3B86SK, 455630, 3B86SK
Grooves 3

Related Products

Comparable to: QD3A8.2/B8.6, 3B86SK, 8.6-3B-SK, 20179475, 3B86-SK SHEAVE, 863B, 3B86, 3B86SK, 455630, 3B86SK
