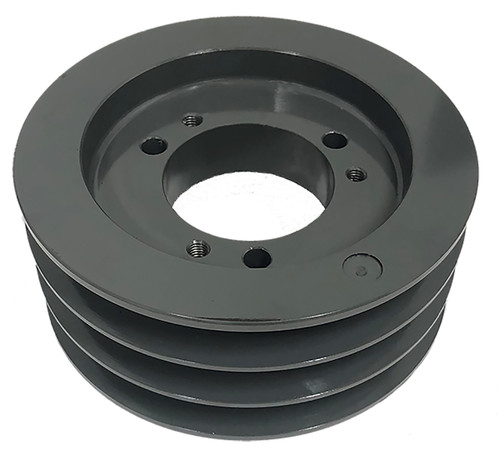

3C270F, V-Belt Pulley

3C270F, QD3C27

3C270F

3C270F, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 3C270F to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 3C270F
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for F Bushing
Outside Diameter (in) 27.400
Face Width (in) 3.250
Min. Bore (in) 1
Unit System Inch
Bushing F
L (in) 3.75
MOQ 1
Sheave Type C
Weight (lb) 103.00
Part Number Cross Reference QD3C27.0, 3C270F, 27.0-3C-F PULLEY, 20179180, 3C270-F SHEAVE, 2703C, 3C270, 3C270F, 456013, 3C270F
Grooves 3

Related Products

Comparable to: QD3C27.0, 3C270F, 27.0-3C-F PULLEY, 20179180, 3C270-F SHEAVE, 2703C, 3C270, 3C270F, 456013, 3C270F
