3C360F, V-Belt Pulley

3C360F, QD3C36

3C360F

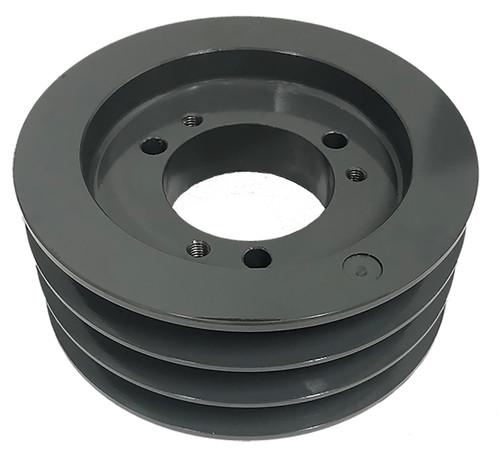

3C360F, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 3C360F to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 3C360F
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for F Bushing
Outside Diameter (in) 36.400
Face Width (in) 3.250
Min. Bore (in) 1
Unit System Inch
Bushing F
L (in) 3.75
MOQ 1
Sheave Type C
Weight (lb) 161.70
Part Number Cross Reference QD3C36.0, 3C360F, 36.0-3C-F PULLEY, 20179239, 3C360-F SHEAVE, 3603C, 3C360, 3C360F, 455826, 3C360F
Grooves 3

Related Products

Comparable to: QD3C36.0, 3C360F, 36.0-3C-F PULLEY, 20179239, 3C360-F SHEAVE, 3603C, 3C360, 3C360F, 455826, 3C360F
