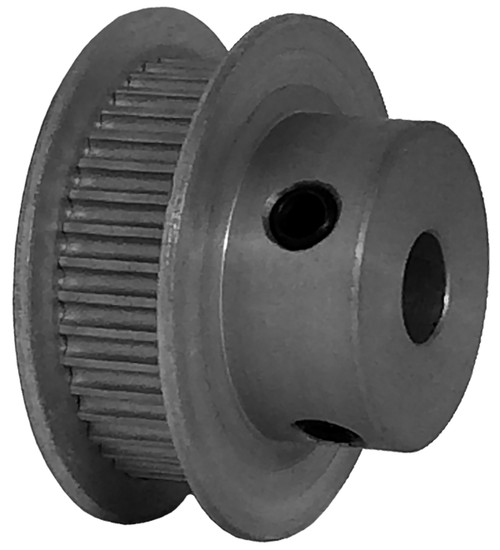

40-2P06-6FA3, Timing Pulley

40-2P06-6FA3 - Aluminum Powerhouse® Pulleys

40-2P06-6FA3

Click to Enlarge

40-2P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 40-2P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-2P06-6FA3
Teeth 40
Tooth Style 2P
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.003
Outside Diameter (in) 0.983
Flange Diameter (in) 1.210
Face Width (in) 0.389
Overall Length (in) 0.719
Hub Diameter (in) 0.754
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
P.D. (mm) 26.00
O.D. (mm) 25.00
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference A 6A51-040DF0608, A6A51-040DF0608, 2MR-40S-06, 2MR-40S-06, TP2A3W6-40, 40-2GT06-1A X 1/4, 40-2GT06-1A X 1/4, 40-2P06-6FA3, 40-2P06-6FA3
Set Screw Quantity 2

Comparable to: A 6A51-040DF0608, A6A51-040DF0608, 2MR-40S-06, 2MR-40S-06, TP2A3W6-40, 40-2GT06-1A X 1/4, 40-2GT06-1A X 1/4, 40-2P06-6FA3, 40-2P06-6FA3
