40-5M15M6A10, Timing Pulley

40-5M15M6A10 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 40-5M15M6A10

Comparable to: A 6A25M040NF1510, A6A25M040NF1510

Click to Enlarge

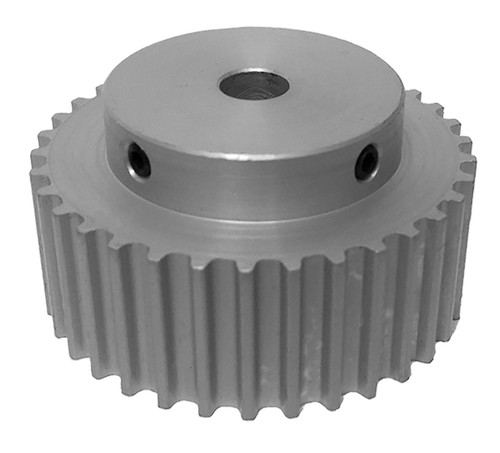

40-5M15M6A10, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 40-5M15M6A10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-5M15M6A10
Teeth 40
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (mm) 10.00
Pulley Belt Width (mm) 15.00
Unit System Metric
P.D. (mm) 63.60
O.D. (mm) 62.50
Face Width (mm) 19.80
Overall Length (mm) 30.10
Hub Diameter (mm) 38.10
MOQ 1
Weight (lb) 0.42
Part Number Cross Reference A 6A25M040NF1510, A6A25M040NF1510
Set Screw Quantity 2
