40-5MX25-6FS6, Timing Pulley

40-5MX25-6FS6

Click to Enlarge

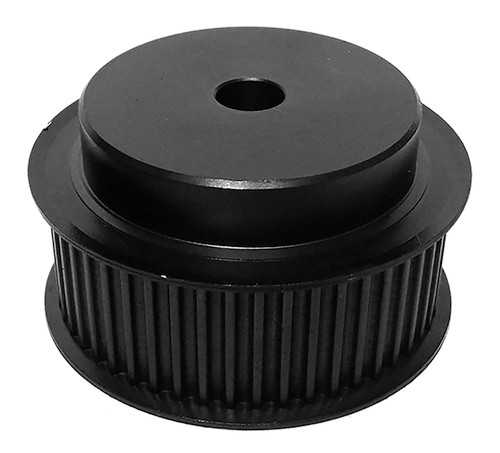

40-5MX25-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 40-5MX25-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	40-5MX25-6FS6
Teeth	40
Tooth Style	5MX
For Belt Width (mm)	25.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.506
Outside Diameter (in)	2.461
Flange Diameter (in)	2.750
Face Width (in)	1.280
Overall Length (in)	1.780
Hub Diameter (in)	2.090
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.100
Unit System	Inch
P.D. (mm)	64.00
O.D. (mm)	62.50
MOQ	1
Weight (lb)	2.10
Part Number Cross Reference	40-5MX25-6FS6, 40-5MX25-6FS6
