40-8M-PS8S, Timing Pulley Stock

40-8M-PS8S

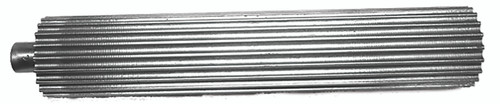

40-8M-PS8S, Timing Pulley Stock, Steel

Learn more about 40-8M-PS8S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	40-8M-PS8S
Teeth	40
Tooth Style	HTD8mm
Material	Steel
Pitch Diameter (in)	4.010
Outside Diameter (in)	3.956
Overall Length (in)	9.000
Unit System	Inch
Min. Usable Length (in)	8.000
P.D. (mm)	101.90
O.D. (mm)	100.50
MOQ	1
Weight (lb)	27.06
Part Number Cross Reference	40-8M-PS-8S, 40-8M-PS8S, 40-8M-PS8S
Shank Length (in)	1.0000
