40-8MXF62X1, Timing Pulley

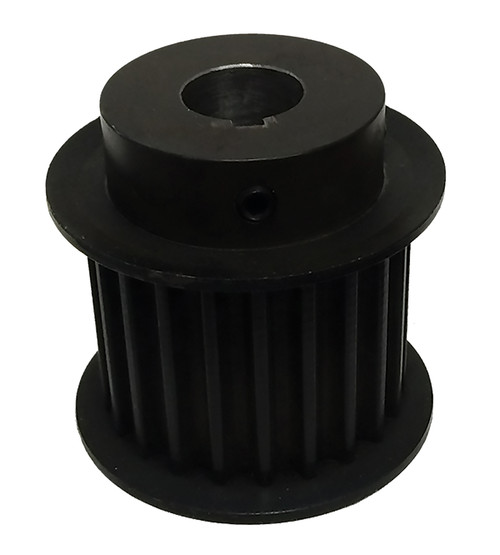

40-8MXF62X1 - Cast Iron Powerhouse® MX Pulleys

40-8MXF62X1

40-8MXF62X1 - Cast Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

40-8MXF62X1, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 40-8MXF62X1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-8MXF62X1
Teeth 40
Tooth Style 8MX
For Belt Width (mm) 62.00
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 Inch Finished Bore
Pitch Diameter (in) 4.010
Outside Diameter (in) 3.947
Flange Diameter (in) 4.330
Face Width (in) 2.906
Overall Length (in) 3.625
Min. Bore (in) 1
Unit System Inch
P.D. (mm) 102.00
O.D. (mm) 100.30
MOQ 1
Weight (lb) 4.50
Part Number Cross Reference 40-8MXF62X1, 40-8MXF62X1
Set Screw Quantity 2
