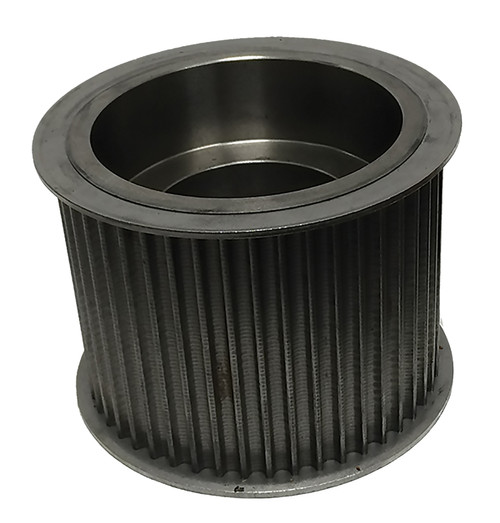

40-8P85-2012, Timing Pulley

40-8P85-2012 - Cast Iron Powerhouse® Pulleys

40-8P85-2012

40-8P85-2012 - Cast Iron Powerhouse® Pulleys Line Drawing

Click to Enlarge

40-8P85-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 40-8P85-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 40-8P85-2012
Teeth 40
Tooth Style 8P
For Belt Width (mm) 85.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 4.010
Outside Diameter (in) 3.956
Flange Diameter (in) 4.331
Face Width (in) 3.750
Overall Length (in) 3.750
Min. Bore (in) 0.5
Pulley Belt Width (in) 3.500
Unit System Inch
Bushing 2012
P.D. (mm) 102.00
O.D. (mm) 100.50
MOQ 1
Weight (lb) 4.47
Part Number Cross Reference P40-8MGT-85, B408M85TL, P40-8M-85-2012, 20182814, P40-8M85-2012, P408M85TL, 40-8P85-2012, 40-8P85-2012
