40HQ300 Imperial Pitch Pulleys

40HQ300

Product Details for 40HQ300

Comparable to: 40HQ300

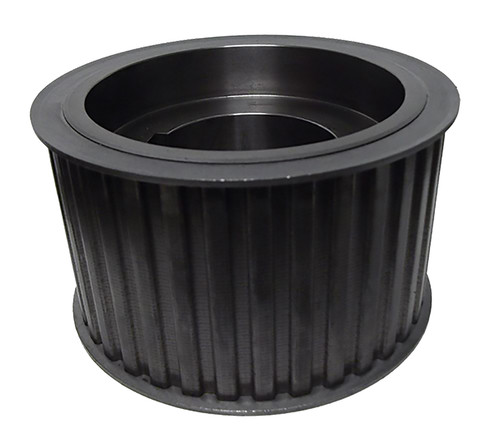

40HQ300, Timing Pulley, Powerhouse Timing, Q1 Bushing, Cast Iron

Specifications

Product Number 40HQ300
Teeth 40
Tooth Style H
For Belt Width (in) 3.000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) Q1
Pitch Diameter (in) 6.386
Outside Diameter (in) 6.312
Flange Diameter (in) 6.563
Face Width (in) 3.313
Overall Length (in) 3.594
Unit System Inch
Bushing Q1
Weight (lb) 15.90
Part Number Cross Reference 40HQ300

Documentation

Download Catalog 2015_BBMAN_CATALOG_65.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 40HQ300_REACH_cert
RoHS Certification 40HQ300_RoHS_cert
