40L-PS8A Bar Stock

40L-PS8A, 40L-PS-8A, L 40

Product Details for 40L-PS8A

Comparable to: 40L-PS8A, 40L-PS-8A, L 40

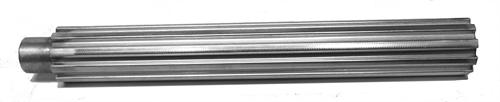

40L-PS8A, Timing Pulley Stock, Powerhouse Timing, 8 Inch Usable Length, Aluminum

Specifications

Product Number 40L-PS8A
Teeth 40
Tooth Style L
Material Aluminum
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.745
Overall Length (in) 9.000
Unit System Inch
Min. Usable Length (in) 8.000
P.D. (mm) 121.30
O.D. (mm) 120.50
Weight (lb) 16.82
List Price (1-9 Qty.) (USD) 170.1
Discount Price (10-24 Qty.) (USD) 144.59
Discount Price (25-49 Qty.) (USD) 127.58
Discount Price (50-99 Qty.) (USD) 119.07
Part Number Cross Reference 40L-PS8A, 40L-PS-8A, L 40

Documentation

Download Catalog 2015_BBMAN_CATALOG_266.pdf
For custom parts click here custom.html
REACH Certification 40L-PS8A_REACH_cert
RoHS Certification 40L-PS8A_RoHS_cert
