40LH075 Imperial Pitch Pulleys

40LH075

Product Details for 40LH075

Comparable to: 40LH075

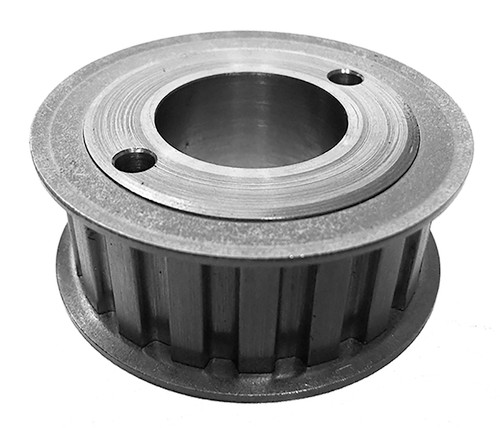

40LH075, Timing Pulley, Powerhouse Timing, H Bushing, Cast Iron

Specifications

Product Number 40LH075
Teeth 40
Tooth Style L
For Belt Width (in) 0.750
Type 16
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) H
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.745
Flange Diameter (in) 5.000
Face Width (in) 1.000
Overall Length (in) 1.438
Unit System Inch
Bushing H
Weight (lb) 3.80
Part Number Cross Reference 40LH075

Documentation

Download Catalog 2015_BBMAN_CATALOG_42.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 40LH075_REACH_cert
RoHS Certification 40LH075_RoHS_cert
