40LH100 Imperial Pitch Pulleys

40LH100

Product Details for 40LH100

Comparable to: 40LH100

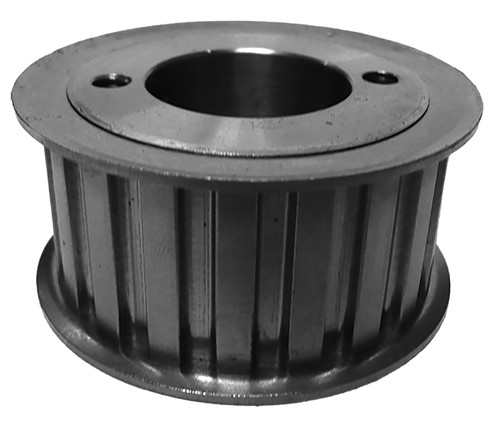

40LH100, Timing Pulley, Powerhouse Timing, H Bushing, Cast Iron

Specifications

Product Number 40LH100
Teeth 40
Tooth Style L
For Belt Width (in) 1.000
Type 16
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) H
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.745
Flange Diameter (in) 5.000
Face Width (in) 1.250
Overall Length (in) 1.438
Unit System Inch
Bushing H
Weight (lb) 4.00
Part Number Cross Reference 40LH100

Documentation

Download Catalog 2015_BBMAN_CATALOG_48.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 40LH100_REACH_cert
RoHS Certification 40LH100_RoHS_cert
