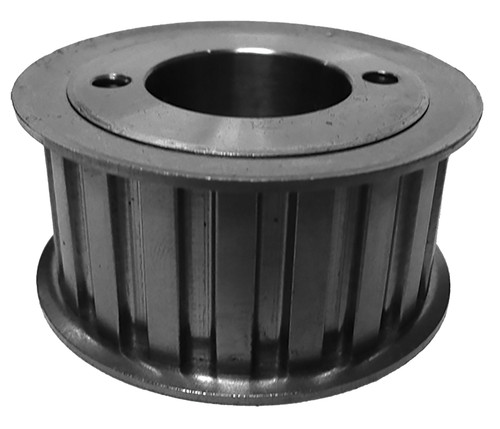

40LP100 Imperial Pitch Pulleys

40LP100

Product Details for 40LP100

Comparable to: 40LP100,

40LP100, Timing Pulley, Powerhouse Timing, P1 Bushing, Cast Iron

Specifications

Product Number 40LP100
Teeth 40
Tooth Style L
For Belt Width (in) 1.000
Type 6
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) P1
Pitch Diameter (in) 4.775
Outside Diameter (in) 4.745
Flange Diameter (in) 5.000
Face Width (in) 1.250
Overall Length (in) 2.188
Unit System Inch
Bushing P1
Weight (lb) 5.00
List Price (1-9 Qty.) (USD) 101.92
Discount Price (10-24 Qty.) (USD) 91.73
Discount Price (25-49 Qty.) (USD) 81.54
Part Number Cross Reference 40LP100,

Documentation

Download Catalog 2015_BBMAN_CATALOG_48.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 40LP100_REACH_cert
RoHS Certification 40LP100_RoHS_cert
