40MP025-6FA3 Imperial Pitch Pulleys

40MP025-6FA3, A 6A16-040DF2508, PB40MXL025, 78260140, PT040A08L04T, TP7A4W4-40

Product Details for 40MP025-6FA3

Comparable to: 40MP025-6FA3, A 6A16-040DF2508, PB40MXL025, 78260140, PT040A08L04T, TP7A4W4-40

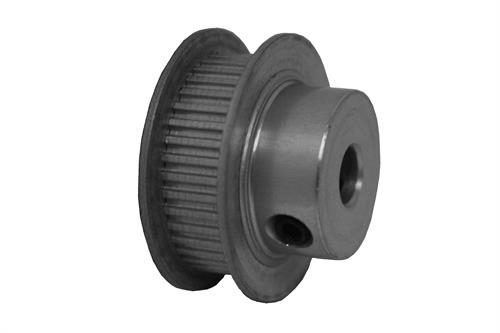

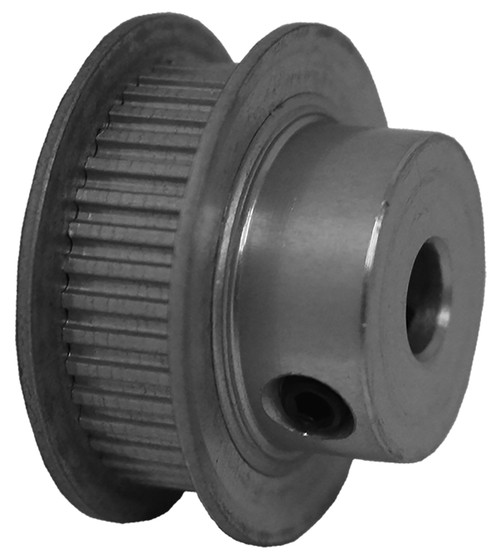

40MP025-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Specifications

Product Number 40MP025-6FA3
Teeth 40
Tooth Style MXL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 1.019
Outside Diameter (in) 0.999
Flange Diameter (in) 1.210
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.754
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
Weight (lb) 0.07
List Price (1-9 Qty.) (USD) 10.18
Discount Price (10-24 Qty.) (USD) 9.42
Discount Price (25-49 Qty.) (USD) 6.87
Discount Price (50-99 Qty.) (USD) 6.11
Discount Price (100-249 Qty.) (USD) 5.6
Part Number Cross Reference 40MP025-6FA3, A 6A16-040DF2508, PB40MXL025, 78260140, PT040A08L04T, TP7A4W4-40

Documentation

Download Catalog 2015_BBMAN_CATALOG_4.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 40MP025-6FA3_REACH_cert
RoHS Certification 40MP025-6FA3_RoHS_cert
